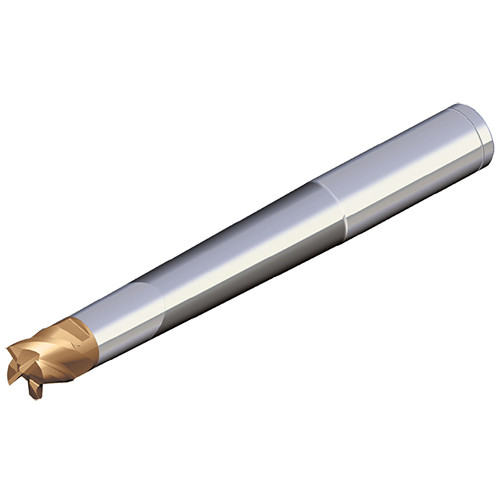

Carbide shanks with taper neck for MAXIRUSH milling heads
Additional information
Weight
0.1480 kg
Dimensions
barcode
Additional Information

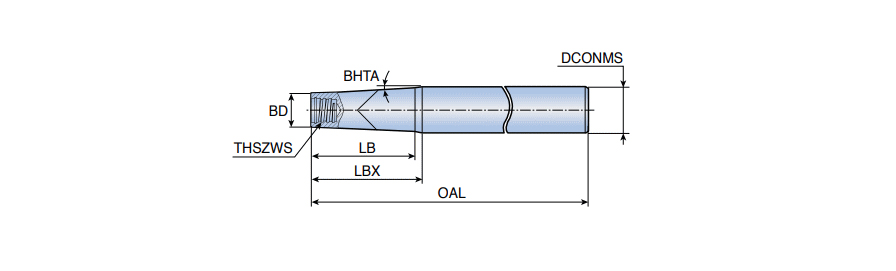

Connection Thread Nominal Size Workpiece Side (THSZWS): S05
Body Diameter (BD): 7.6 mm
Connection Diameter Machine Side (DCONMS): 12 mm
Body Length (LB): 79 mm
Material: Carbide
Measurement Type: Metric
Overall Length (OAL): 130 mm
Body Material: Steel
Body Length Maximum (LBX): 80 mm
Unit: M
Shank Type: Round
