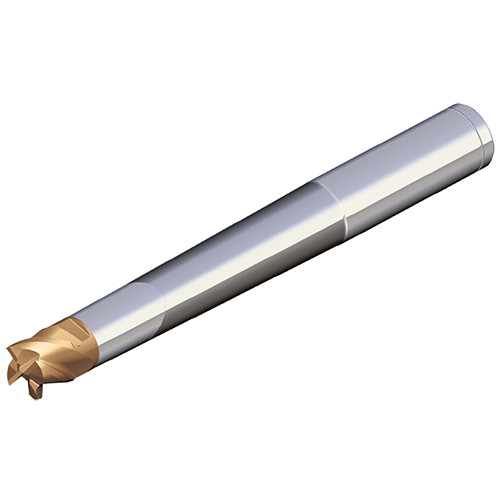

Carbide shanks with taper neck for MAXIRUSH milling heads
Additional information
Weight
0.4520 kg
Dimensions
barcode
Additional Information

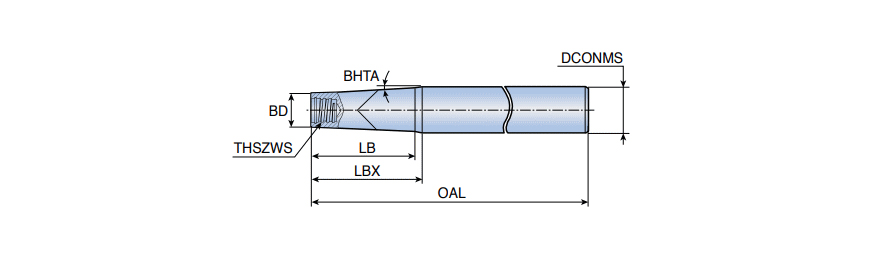

Connection Thread Nominal Size Workpiece Side (THSZWS): S08
Body Diameter (BD): 11.5 mm
Connection Diameter Machine Side (DCONMS): 20 mm
Body Length (LB): 117 mm
Material: Carbide
Measurement Type: Metric
Overall Length (OAL): 170 mm
Body Material: Steel
Body Length Maximum (LBX): 120 mm
Unit: M
Shank Type: Round
