Taegutec NFB 080-SM TT2510

Product Code: 6111679

$50.45$45.86 Ex. GST

Product Code: 6111679 SKU 6111679 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

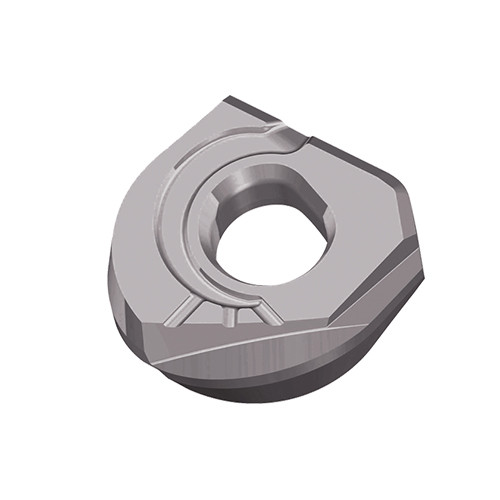

Precision ball nose type inserts with high helical cutting edge for hardened steels and coolant channels on finishing and seme-finishing applications

Weight	0.0040 kg
barcode
Additional Information	Applicable Material:, Steel, Hard Materials, Grade: TT2510 Application:, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.25 mm/tooth Cutting Edge Length (L): 6.9 mm Cutting Edge Material: Carbide Corner Radius (RE): 4 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 3.2 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 8 mm Body Material: Carbide Insert Thickness (S): 2.2 mm Unit: M Coating: AlTiN
