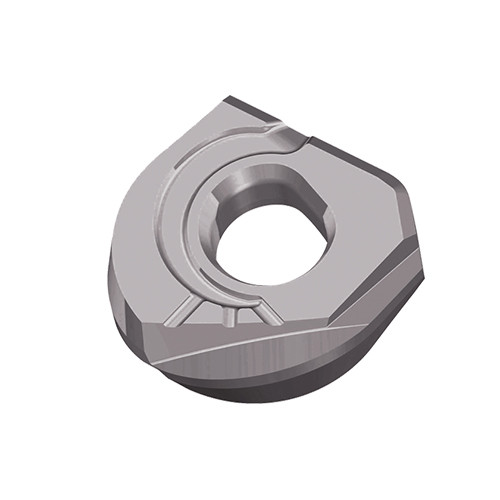

Taegutec NFB 120-SM TT5525

Description

Precision ball nose type inserts with high helical cutting edge for hardened steels and coolant channels on finishing and seme-finishing applications

Weight	0.0065 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT5525 Application:, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.35 mm/tooth Cutting Edge Length (L): 9.7 mm Cutting Edge Material: Carbide Corner Radius (RE): 6 mm Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth Depth of Cut Maximum (APMX): 4.8 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 12 mm Body Material: Carbide Insert Thickness (S): 3.2 mm Unit: M Coating: AlTiCrN
