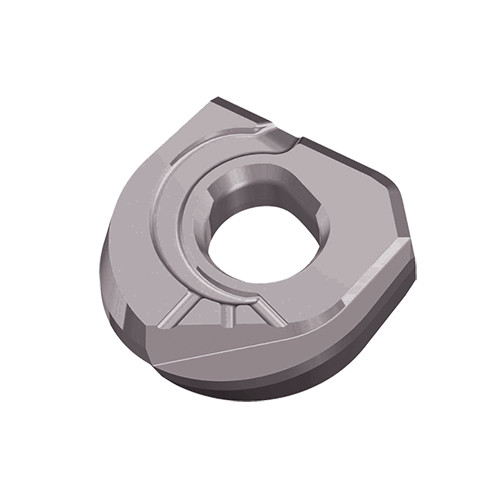

Taegutec NFB 250-FM TT5525

Product Code: 6111710

$97.35$88.50 Ex. GST

Product Code: 6111710 SKU 6111710 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Precision ball nose type inserts with straight cutting edge & coolant channel for finishing to semi-finishing machining.FM: High accurate R & general applications

Additional information

Weight	0.0400 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT5525 Application:, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.4 mm/tooth Corner Radius (RE): 12.5 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 1 mm Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth Inscribed Circle Diameter (IC): 25 mm Measurement Type: Metric Insert Thickness (S): 6.2 mm Body Material: Carbide Coating: AlTiCrN Unit: M
