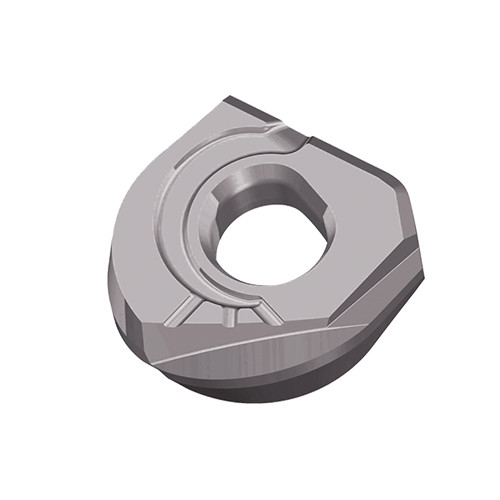

Taegutec NFB 250-SM TT2510

Product Code: 6111711

$107.09$97.35 Ex. GST

Product Code: 6111711 SKU 6111711 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Precision ball nose type inserts with high helical cutting edge for hardened steels and coolant channels on finishing and seme-finishing applications

Weight	0.0440 kg
barcode
Additional Information	Applicable Material:, Steel, Hard Materials, Grade: TT2510 Application:, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.45 mm/tooth Cutting Edge Length (L): 17.4 mm Cutting Edge Material: Carbide Corner Radius (RE): 12.5 mm Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth Depth of Cut Maximum (APMX): 10 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 25 mm Body Material: Carbide Insert Thickness (S): 6.2 mm Unit: M Coating: AlTiN
