Taegutec NFB 300-SM TT2510

Product Code: 6111720

$133.87$121.70 Ex. GST

Product Code: 6111720 SKU 6111720 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

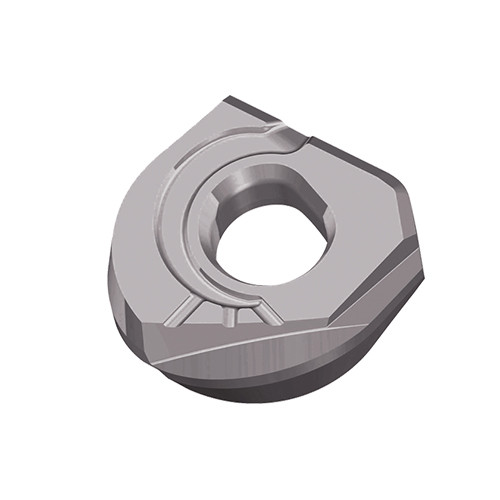

Precision ball nose type inserts with high helical cutting edge for hardened steels and coolant channels on finishing and seme-finishing applications

Weight	0.0580 kg
barcode
Additional Information	Applicable Material:, Steel, Hard Materials, Grade: TT2510 Application:, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.45 mm/tooth Cutting Edge Length (L): 19.2 mm Cutting Edge Material: Carbide Corner Radius (RE): 15 mm Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth Depth of Cut Maximum (APMX): 12 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 30 mm Body Material: Carbide Insert Thickness (S): 7.2 mm Unit: M Coating: AlTiN
