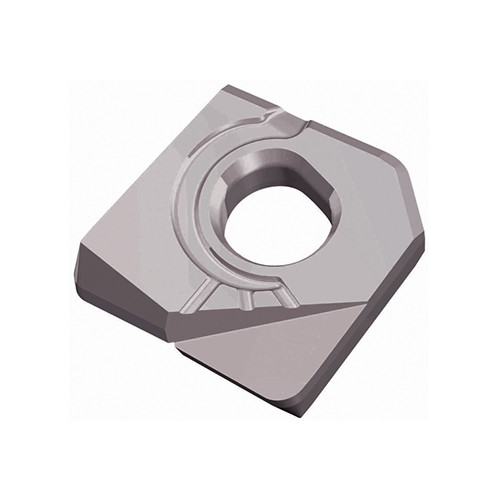

Taegutec NFR 100A-R03 TT5515

Description

Precision corner radius type inserts with coolant channels for finishing and semi-finishing applications

Weight	0.0055 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Cast Iron, Hard Materials, Super-Alloys / Titanium, Grade: TT5515 Application:, Counter Boring, Drill Mill, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Shouldering, Side Plunging, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.12 mm/tooth Cutting Edge Length (L): 4 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.3 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 0.3 mm Number of Cutting Edges: 2 Inscribed Circle Diameter (IC): 10 mm Measurement Type: Metric Insert Thickness (S): 2.7 mm Body Material: Carbide Coating: AlTiCrN Unit: M
