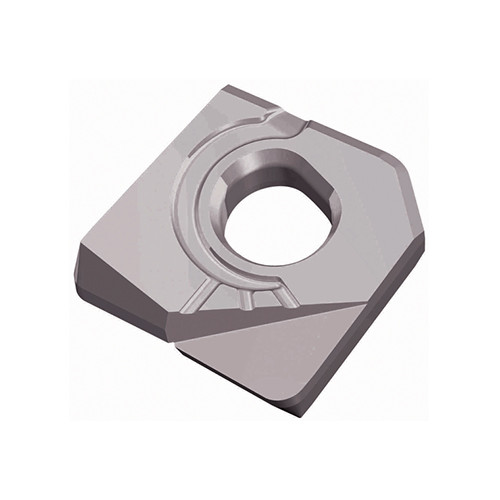

Precision corner radius type inserts with coolant channels for finishing and semi-finishing applications
Additional information
Weight
0.0125 kg
barcode
Additional Information
Applicable Material:, Steel, Hard Materials, Grade: TT2510
Application:, Counter Boring, Drill Mill, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Shouldering, Side Plunging, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth
Cutting Edge Length (L): 6.9 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.3 mm
Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth
Depth of Cut Maximum (APMX): 0.5 mm
Number of Cutting Edges: 2
Inscribed Circle Diameter (IC): 16 mm
Measurement Type: Metric
Insert Thickness (S): 4.2 mm
Body Material: Carbide
Coating: AlTiN
Unit: M
