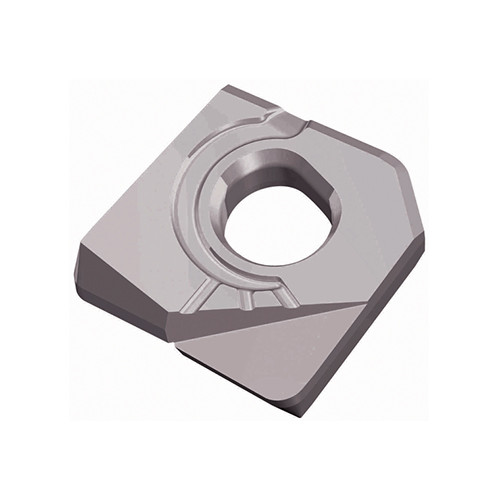

Taegutec NFR 300A-R10 TT5515

Applicable Material:, Steel, Stainless Steel, Cast Iron, Hard Materials, Super-Alloys / Titanium, Grade: TT5515
Application:, Counter Boring, Drill Mill, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Shouldering, Side Plunging, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth
Cutting Edge Length (L): 12.7 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 1 mm
Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth
Depth of Cut Maximum (APMX): 1 mm
Number of Cutting Edges: 2
Inscribed Circle Diameter (IC): 30 mm
Measurement Type: Metric
Insert Thickness (S): 7.1 mm
Body Material: Carbide
Coating: AlTiCrN
Unit: M
