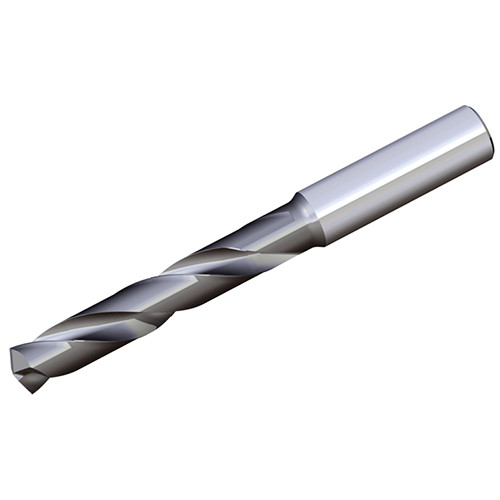

Taegutec NHD 038-029-06 PE5 TT9030

Product Code: 6154822

$154.11$140.10 Ex. GST

Product Code: 6154822 SKU 6154822 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

‎Solid carbide drills without coolant holes & drilling depth 4-5xD

Additional information

Weight 0.0200 kg
Dimensions
barcode
Additional Information

Drill Bit Size / Cutting Diameter (DC): 3.8 mm
Cutting Edge Material: Carbide
Drill Bit Size / Cutting Diameter (DC) – Metric: 3.8 mm
Grade: TT9030
Coating: TiAlN
Measurement Type: Metric
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Usable Length (LU): 29 mm
Application:, Drilling, Tools for Swiss Machines, Length Chip Flute (LCF): 37 mm
Connection Diameter Machine Side (DCONMS): 6 mm
Overall Length (OAL): 74 mm
Point Length (PL): 0.6 mm
Body Material: Carbide
Shank Length (LS): 35 mm
Unit: M

Brand

Taegutec
