Taegutec NHD 040-029-06 KI5 TT9030

Description

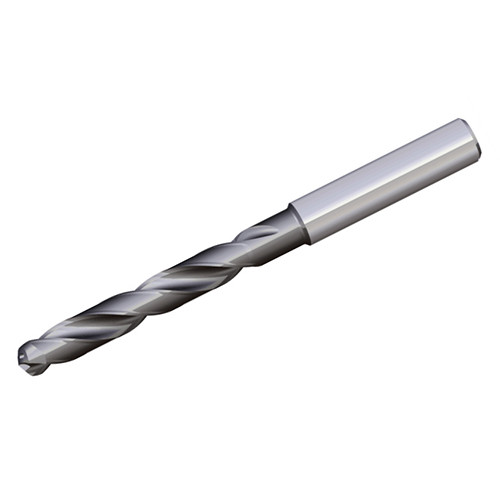

Solid carbide drills with coolant holes, multi-angle cutting edges and drilling depth 5xD exclusively for cast iron machining

Weight	0.0240 kg
Dimensions
barcode
Additional Information	Drill Bit Size / Cutting Diameter (DC): 4 mm Cutting Edge Material: Carbide Drill Bit Size / Cutting Diameter (DC) – Metric: 4 mm Grade: TT9030 Coating: TiAlN Measurement Type: Metric Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Usable Length (LU): 29 mm Application:, Drilling, Tools for Swiss Machines, Length Chip Flute (LCF): 34 mm Connection Diameter Machine Side (DCONMS): 6 mm Overall Length (OAL): 74 mm Point Length (PL): 1.9 mm Body Material: Carbide Shank Length (LS): 35 mm Unit: M
