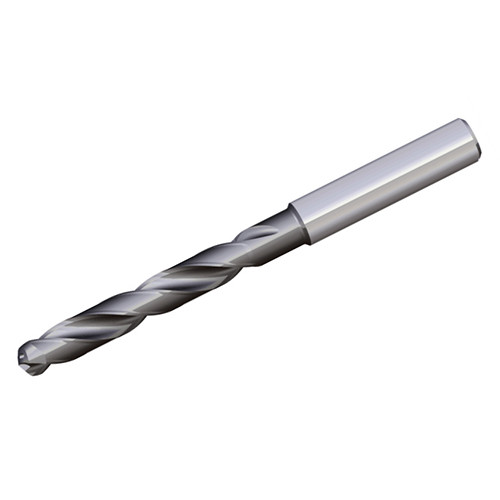

Taegutec NHD 067-043-08 KI5 TT9030

Description

Solid carbide drills with coolant holes, multi-angle cutting edges and drilling depth 5xD exclusively for cast iron machining

Weight	0.0500 kg
Dimensions
barcode
Additional Information	Drill Bit Size / Cutting Diameter (DC): 6.7 mm Cutting Edge Material: Carbide Drill Bit Size / Cutting Diameter (DC) – Metric: 6.7 mm Grade: TT9030 Coating: TiAlN Measurement Type: Metric Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Usable Length (LU): 43 mm Application:, Drilling, Tools for Swiss Machines, Length Chip Flute (LCF): 52 mm Connection Diameter Machine Side (DCONMS): 8 mm Overall Length (OAL): 91 mm Point Length (PL): 3.2 mm Body Material: Carbide Shank Length (LS): 36 mm Unit: M
