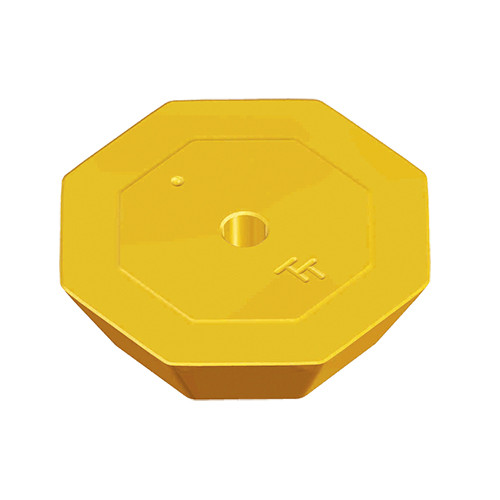

Taegutec OFCN 0704 TN-EMR TT8020

Product Code: 5608932

$28.86$26.24 Ex. GST

Product Code: 5608932 SKU 5608932 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec OFCN 0704 TN-EMR TT8020

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Octagonal super positive flat type milling inserts for hardened and molded steel in wedge clamping cutters

Additional information

Weight	0.0155 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Application:, Chamfer & Serration, Facing, Helical Interpolation, Inserts, Rampdown, Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth Depth of Cut Maximum (APMX): 4 mm Number of Cutting Edges: 8 Inscribed Circle Diameter (IC): 17.94 mm Measurement Type: Metric Insert Thickness (S): 5.1 mm Body Material: Carbide Coating: TiCN Unit: M Grade: TT8020

Brand

Taegutec
