Taegutec OFCN 0704 TN-MR TT7080

Product Code: 5613722

$35.20$32.00 Ex. GST

Product Code: 5613722 SKU 5613722 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

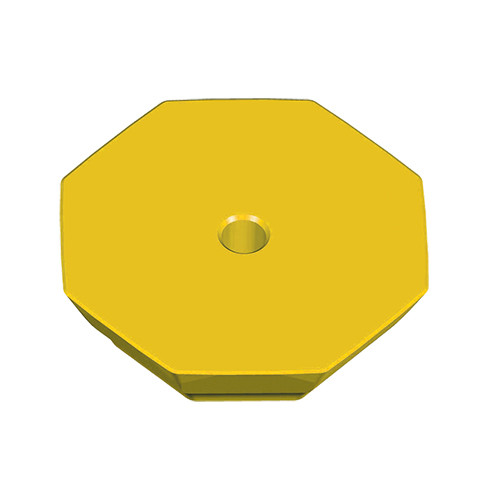

Octagonal super positive flat type milling inserts for hardened and molded steel in wedge clamping cutters

Weight	0.0141 kg
barcode
Additional Information	Applicable Material:, Steel, Cast Iron, Grade: TT7080 Application:, Chamfer & Serration, Facing, Helical Interpolation, Inserts, Rampdown, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Cutting Edge Length (L): 5 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.08 mm/tooth Depth of Cut Maximum (APMX): 4 mm Number of Cutting Edges: 8 Inscribed Circle Diameter (IC): 17.94 mm Measurement Type: Metric Insert Thickness (S): 5 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
