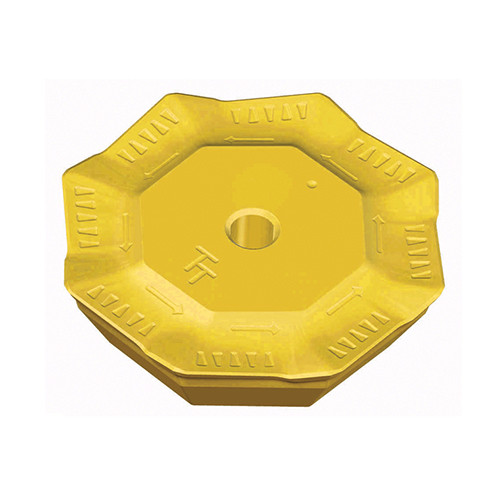

CHASEOCTO octagonal milling insert positive rake used for stainless steel and high temperature alloys.
Additional information
Weight
0.0157 kg
barcode
Additional Information
Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080
Application:, Chamfer & Serration, Facing, Helical Interpolation, Inserts, Rampdown, Maximum Feed per Tooth (fz(max)): 0.19 mm/tooth
Cutting Edge Length (L): 5 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.6 mm
Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth
Depth of Cut Maximum (APMX): 4 mm
Number of Cutting Edges: 8
Inscribed Circle Diameter (IC): 17.94 mm
Measurement Type: Metric
Insert Thickness (S): 5.1 mm
Body Material: Carbide
Coating: AlTiN+TiN
Unit: M
