Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec OFMR 0704 AER-M TT7080
$28.86$26.24 Ex. GST

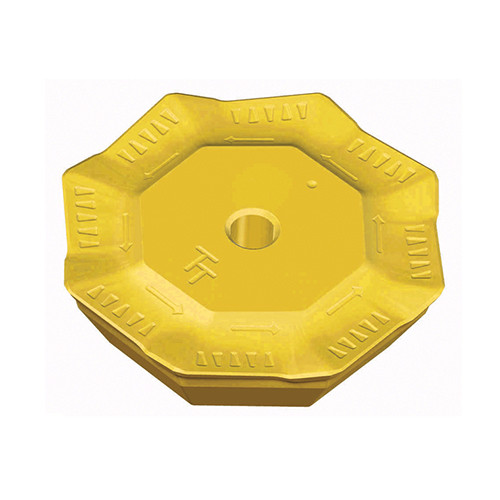

CHASEOCTO octagonal milling insert positive rake used for stainless steel and high temperature alloys.
Applicable Material:, Steel, Cast Iron, Grade: TT7080 Application:, Chamfer & Serration, Facing, Helical Interpolation, Inserts, Rampdown, Maximum Feed per Tooth (fz(max)): 0.19 mm/tooth Cutting Edge Length (L): 5 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.6 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 4 mm Number of Cutting Edges: 8 Inscribed Circle Diameter (IC): 17.94 mm Measurement Type: Metric Insert Thickness (S): 5.1 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
