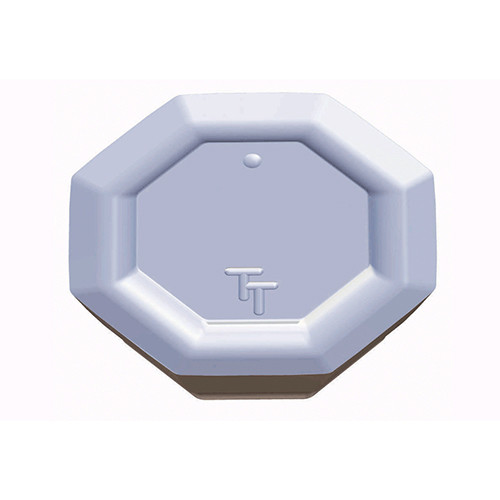

Taegutec OFMR 0704 TN-AL K10

Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10
Application:, Chamfer & Serration, Facing, Helical Interpolation, Inserts, Rampdown, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth
Cutting Edge Length (L): 5 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.8 mm
Minimum Feed per Tooth (fz(min)): 0.075 mm/tooth
Depth of Cut Maximum (APMX): 4 mm
Number of Cutting Edges: 8
Inscribed Circle Diameter (IC): 17.94 mm
Measurement Type: Metric
Insert Thickness (S): 5.1 mm
Body Material: Carbide
Coating: Uncoated
Unit: M
