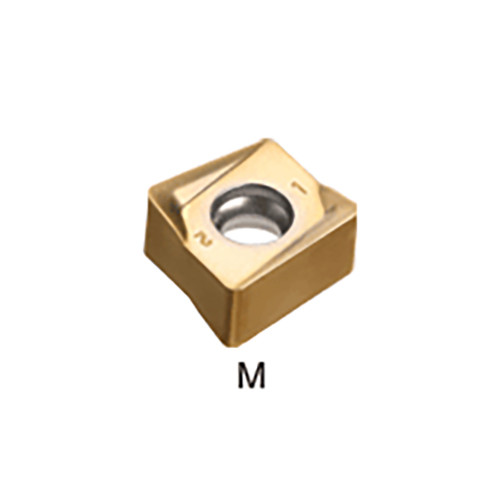

Double-sided plunging inserts with four helical cutting edges for general applications
Additional information
Weight
0.0052 kg
barcode
Additional Information
Applicable Material:, Steel, Hard Materials, Grade: TT2510
Application:, Counter Boring, Facing, Inserts, Side Plunging, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth
Corner Radius (RE): 0.8 mm
Cutting Edge Material: Carbide
Depth of Cut Maximum (APMX): 2.5 mm
Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth
Insert Width (W1): 9 mm
Number of Cutting Edges: 4
Inscribed Circle Diameter (IC): 10 mm
Measurement Type: Metric
Insert Thickness (S): 6.47 mm
Body Material: Carbide
Coating: AlTiN
Unit: M
