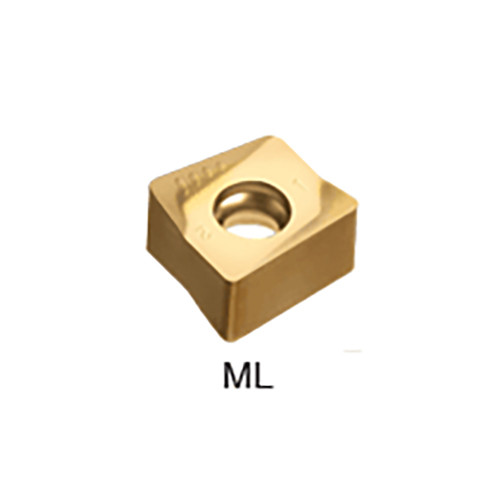

Taegutec PLNG 090408R-ML TT9080

Product Code: 5616553

$30.93$28.12 Ex. GST

Product Code: 5616553 SKU 5616553 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec PLNG 090408R-ML TT9080

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided plunging inserts with four helical cutting edges for difficult-to-cut materials

Additional information

Weight	0.0057 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Counter Boring, Facing, Inserts, Side Plunging, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Cutting Edge Length (L): 2.8 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 2 mm Number of Cutting Edges: 4 Insert Width (W1): 9 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 10 mm Body Material: Carbide Insert Thickness (S): 6.47 mm Unit: M Coating: TiAlN+TiN

Brand

Taegutec
