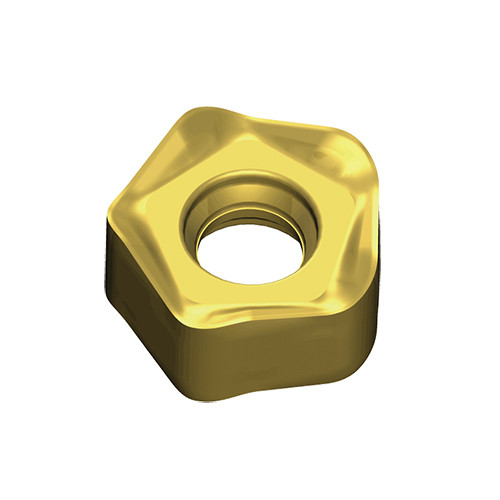

Taegutec PTKU 1006R-M TT9080

Product Code: 6308003

$46.71$42.46 Ex. GST

Product Code: 6308003 SKU 6308003 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec PTKU 1006R-M TT9080

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

High positive double-sided inserts with economical 10 cutting edges for 65° Face mills and High Feed mills

Additional information

Weight	0.0127 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Chamfer & Serration, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.25 mm/tooth Corner Radius (RE): 3 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 5 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Inscribed Circle Diameter (IC): 14.19 mm Measurement Type: Metric Insert Thickness (S): 7.71 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M

Brand

Taegutec
