Taegutec RCGX 120700 E TC3020

Product Code: 6182038

$44.20$40.18 Ex. GST

Product Code: 6182038 SKU 6182038 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

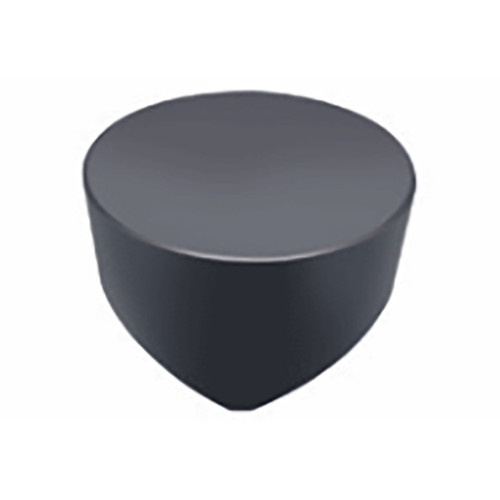

Positive Round ground Ceramic inserts with 7° clearance angle with V shape bottom for nickel based super alloys & hardened steels machining

Weight	0.0037 kg
barcode
Additional Information	Applicable Material:, Super-Alloys / Titanium, Depth of Cut Maximum (APMX): 4 mm Application:, Ext Neutral Round, Ext Profile Round, Inserts, Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 7.94 mm Max. Turning Feed (ft(max)): 0.35 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Ceramic Body Material: Carbide Grade: TC3020 Unit: M Min D.O.C.: 0.1 mm
