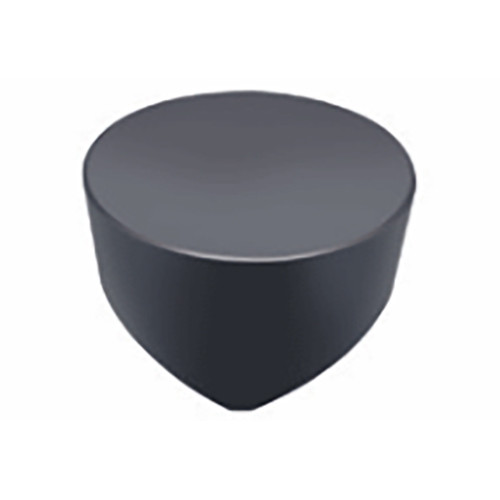

Taegutec RCGX 120700 U2 AB20

Product Code: 5700101

$52.15$47.41 Ex. GST

Product Code: 5700101 SKU 5700101 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive Round ground Ceramic inserts with 7° clearance angle with V shape bottom for nickel based super alloys & hardened steels machining

Weight	0.0044 kg
barcode
Additional Information	Applicable Material:, Hard Materials, Min D.O.C.: 0.1 mm Application:, Ext Neutral Round, Ext Profile Round, Inserts, Depth of Cut Maximum (APMX): 4 mm Insert Thickness (S): 7.94 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Max. Turning Feed (ft(max)): 0.35 mm/rev Cutting Edge Material: Ceramic Measurement Type: Metric Coating: TiCN+Al2O3 Body Material: Carbide Grade: AB20 Unit: M
