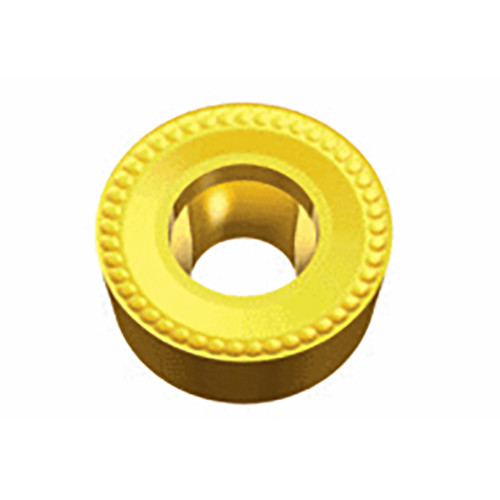

Taegutec RCMT 120400 MT TT7005

Product Code: 5523809

$18.15$16.50 Ex. GST

Product Code: 5523809 SKU 5523809 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive Round inserts with 7° clearance angle for medium to medium rough applications of steel, stainless steel and cast iron

Weight	0.0060 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Min D.O.C.: 2 mm Application:, Ext Neutral Round, Ext Profile Round, Inserts, Depth of Cut Maximum (APMX): 5 mm Insert Thickness (S): 4.76 mm Min. Turning Feed (ft(min)): 0.3 mm/rev Inscribed Circle Diameter (IC): 12 mm Max. Turning Feed (ft(max)): 0.6 mm/rev Cutting Edge Material: Carbide Measurement Type: Metric Coating: TiCN+Al2O3 Body Material: Carbide Grade: TT7005 Unit: M Fixing Hole Diameter (D1): 4.4 mm
