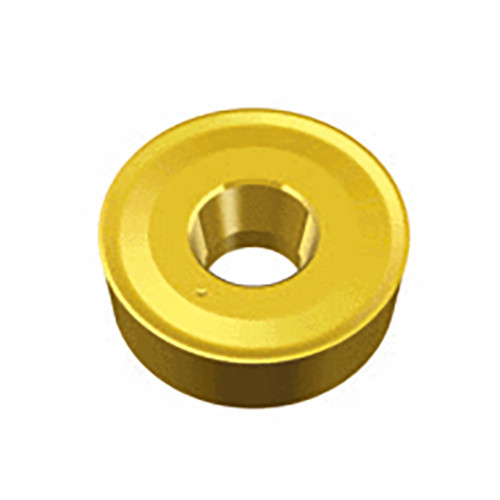

Taegutec RCMX 100300 K10

Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Min D.O.C.: 1.5 mm
Application:, Ext Neutral Round, Ext Profile Round, Inserts, Depth of Cut Maximum (APMX): 4 mm
Insert Thickness (S): 3.18 mm
Min. Turning Feed (ft(min)): 0.25 mm/rev
Inscribed Circle Diameter (IC): 10 mm
Max. Turning Feed (ft(max)): 0.5 mm/rev
Cutting Edge Material: Carbide
Measurement Type: Metric
Coating: Uncoated
Body Material: Carbide
Grade: K10
Unit: M
Fixing Hole Diameter (D1): 3.61 mm
