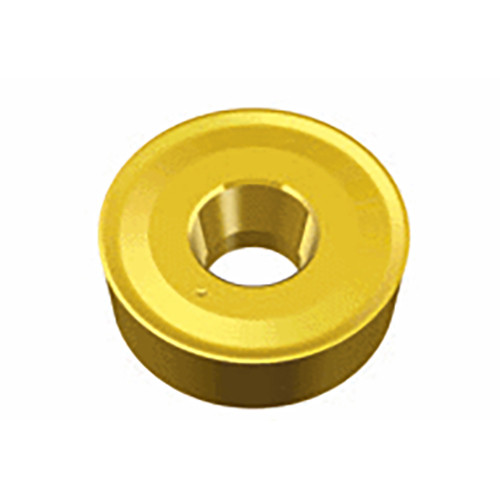

Taegutec RCMX 120400 TT7100

Product Code: 5520872

$16.39$14.90 Ex. GST

Product Code: 5520872 SKU 5520872 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive Round inserts with 7° clearance angle for high feed roughing of steel, stainless steel and cast iron

Weight	0.0059 kg
barcode
Additional Information	Applicable Material:, Steel, Min D.O.C.: 2.5 mm Application:, Ext Neutral Round, Ext Profile Round, Inserts, Depth of Cut Maximum (APMX): 5 mm Insert Thickness (S): 4.76 mm Min. Turning Feed (ft(min)): 0.3 mm/rev Inscribed Circle Diameter (IC): 12 mm Max. Turning Feed (ft(max)): 0.6 mm/rev Cutting Edge Material: Carbide Measurement Type: Metric Coating: TiCN+Al2O3+TiN Body Material: Carbide Grade: TT7100 Unit: M Fixing Hole Diameter (D1): 4.19 mm
