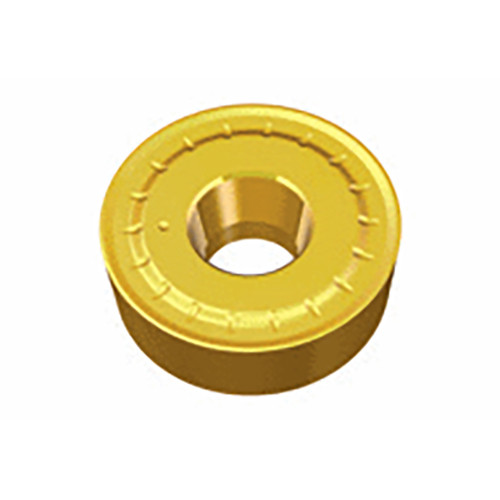

Taegutec RCMX 200600 RA TT8105B

Product Code: 6243536

$40.83$37.12 Ex. GST

Product Code: 6243536 SKU 6243536 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive Round inserts for heavy and interrupted machining of steel, stainless steel and cast iron with 7° clearance angle

Weight	0.0255 kg
barcode
Additional Information	Applicable Material:, Steel, Min D.O.C.: 3 mm Application:, Ext Neutral Round, Ext Profile Round, Inserts, Depth of Cut Maximum (APMX): 9 mm Cutting Edge Length (L): 0 mm Min. Turning Feed (ft(min)): 0.4 mm/rev Insert Thickness (S): 6.35 mm Max. Turning Feed (ft(max)): 0.9 mm/rev Inscribed Circle Diameter (IC): 20 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN-Al203-TiN Unit: M Grade: TT8105B
