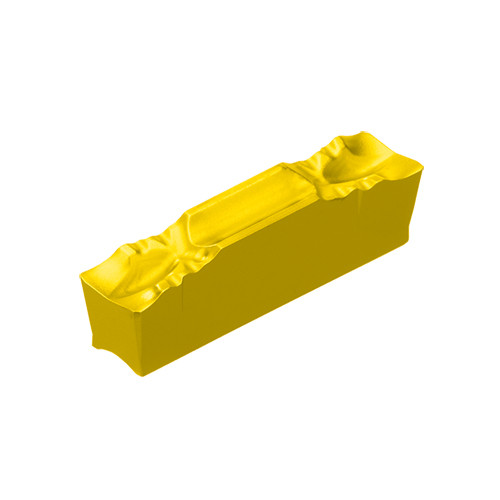

Taegutec RDJ 3-6R TT7220

Product Code: 6223722

$28.64$26.04 Ex. GST

Product Code: 6223722 SKU 6223722 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-ended J-breaker handed type inserts with lead angle for parting of small dia. solid bar or tube to minimize pips or burrs on stainless steel and super alloys with sharp cutting edge

Additional information

Weight	0.0032 kg
Dimensions
barcode

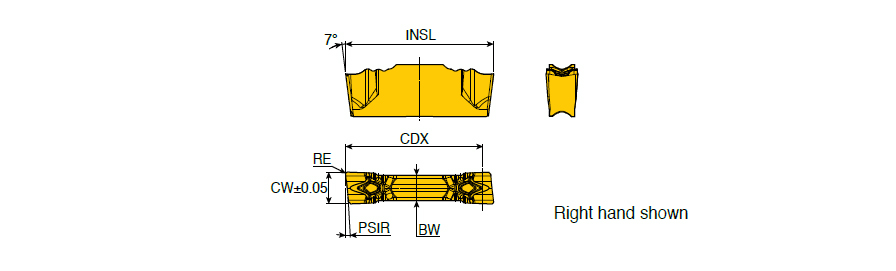

Additional Information	Cutting Width (CW): 3 mm Grade: TT7220 Corner Radius (RE): 0.2 mm Application:, Inserts, Parting, Overall Length (OAL): 14 mm Applicable Material:, Steel, Stainless Steel, Cutting Depth Maximum (CDX): 13 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN Unit: M
