Taegutec RDJ 5 K10

Product Code: 6243699

$26.60$24.18 Ex. GST

Product Code: 6243699 SKU 6243699 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

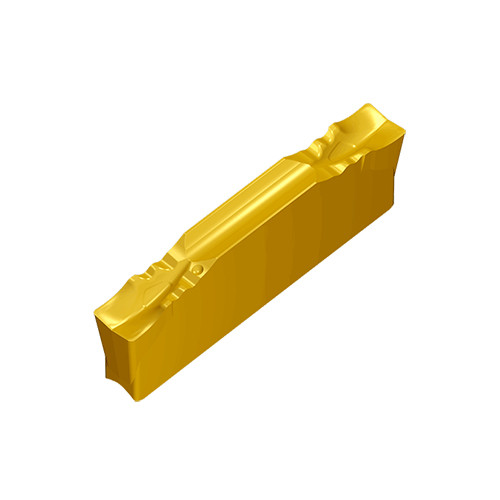

Double-ended J-type inserts for low cutting force machining of parting on small dia. solid bar and shallow grooving with sharp cutting edge

Weight	0.0066 kg
Dimensions
barcode

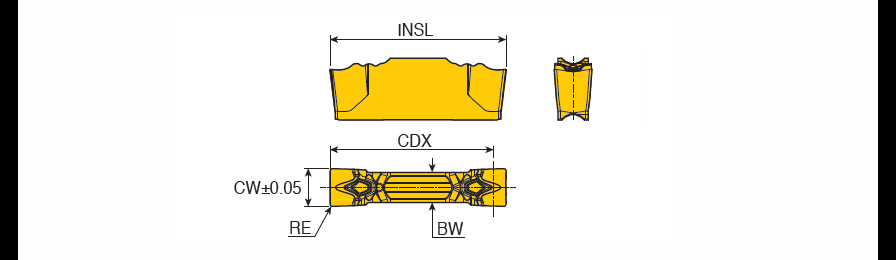

Additional Information	Cutting Width (CW): 5 mm Grade: K10 Corner Radius (RE): 0.3 mm Application:, Ext. Grooving, Inserts, Parting, Overall Length (OAL): 17.5 mm Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Cutting Depth Maximum (CDX): 17 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: Uncoated Unit: M
