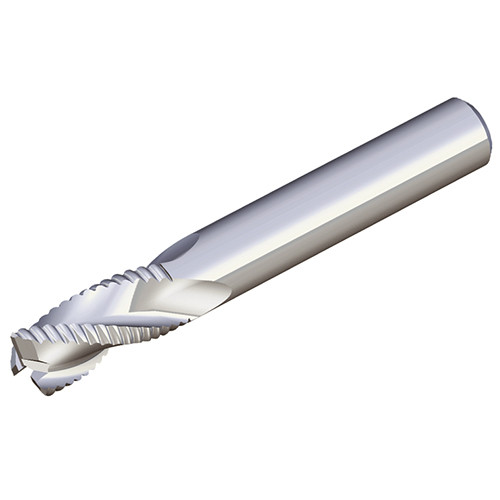

Taegutec REA 3200L UF10

Cutting Diameter (DC): 20 mm
End Shape: Chamfer
Connection Diameter Machine Side (DCONMS): 20 mm
Applicable Material:, Steel, Stainless Steel, Aluminum / Non-Ferrous Materials, Depth of Cut Maximum (APMX): 38 mm
Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Overall Length (OAL): 104 mm
Corner Chamfer Width (CHW): 0.99 mm
Cutting Edge Material: Carbide
Grade: UF10
Coating: Uncoated
Body Material: Carbide
Flute Count (NOF): 3
Measurement Type: Metric
Flute Helix Angle (FHA): 30 Degrees
Unit: M
Shank Type: Round
