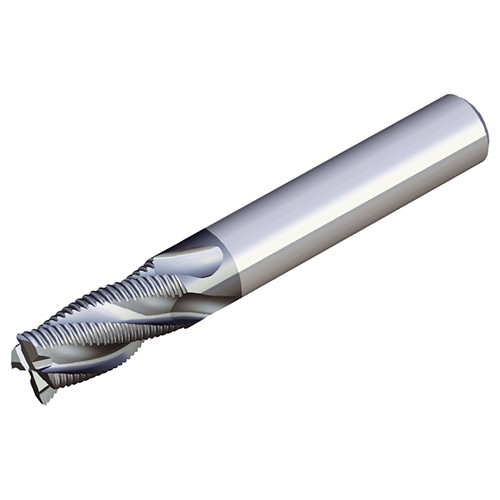

Taegutec REH 4120L TT5525

Cutting Diameter (DC): 12 mm
Usable Length (LU): 37 mm
Connection Diameter Machine Side (DCONMS): 12 mm
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Depth of Cut Maximum (APMX): 26 mm
Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Overall Length (OAL): 83 mm
Corner Chamfer Width (CHW): 0.36 mm
Cutting Edge Material: Carbide
Grade: TT5525
Coating: AlTiCrN
Neck Diameter (DN): 11.5
Flute Count (NOF): 4
Body Material: Carbide
Flute Helix Angle (FHA): 45 Degrees
Measurement Type: Metric
Shank Type: Round
Unit: M
End Shape: Chamfer
