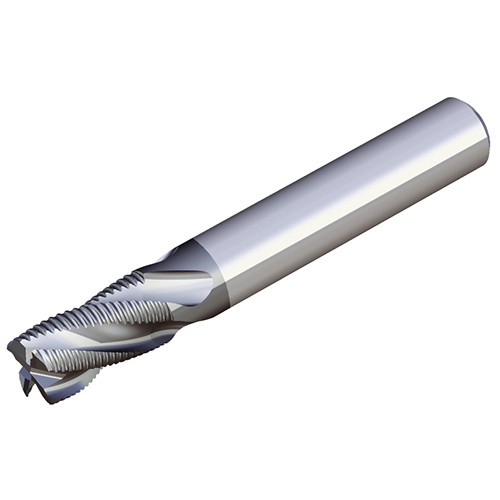

Taegutec REH 5140M-14 TT5525

Description

‎Solid carbide roughing end mills with serrated cutting edges & medium length type & 3-6 flute & corner chamfer for low hardness part

Weight	0.1700 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC): 14 mm End Shape: Chamfer Connection Diameter Machine Side (DCONMS): 14 mm Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Depth of Cut Maximum (APMX): 26 mm Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Overall Length (OAL): 83 mm Corner Chamfer Width (CHW): 0.36 mm Cutting Edge Material: Carbide Grade: TT5525 Coating: AlTiCrN Body Material: Carbide Flute Count (NOF): 5 Measurement Type: Metric Flute Helix Angle (FHA): 45 Degrees Unit: M Shank Type: Round
