Taegutec REH 5160M TT5525

Description

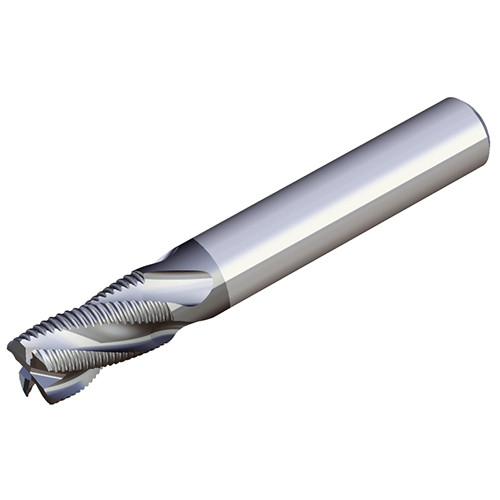

‎Solid carbide roughing end mills with serrated cutting edges & medium length type & 3-6 flute & corner chamfer for low hardness part

Weight	0.2360 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC): 16 mm End Shape: Chamfer Connection Diameter Machine Side (DCONMS): 16 mm Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Depth of Cut Maximum (APMX): 32 mm Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Overall Length (OAL): 92 mm Corner Chamfer Width (CHW): 0.36 mm Cutting Edge Material: Carbide Grade: TT5525 Coating: AlTiCrN Body Material: Carbide Flute Count (NOF): 5 Measurement Type: Metric Flute Helix Angle (FHA): 45 Degrees Unit: M Shank Type: Round
