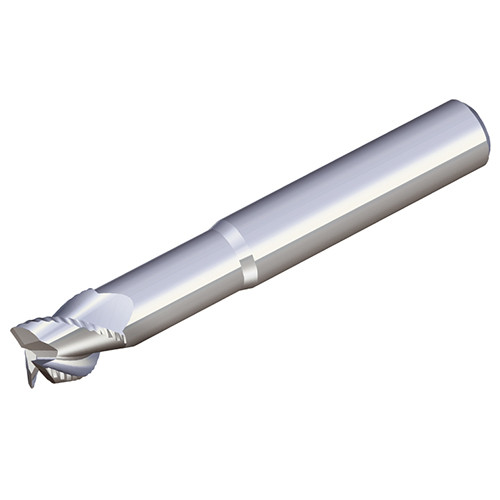

Taegutec REMA 3100 UF10

Cutting Diameter (DC): 10 mm
Usable Length (LU): 31 mm
Connection Diameter Machine Side (DCONMS): 10 mm
Applicable Material:, Steel, Stainless Steel, Aluminum / Non-Ferrous Materials, Depth of Cut Maximum (APMX): 12 mm
Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Overall Length (OAL): 72 mm
Corner Radius (RE): 0.2 mm
Cutting Edge Material: Carbide
Grade: UF10
Coating: Uncoated
Neck Diameter (DN): 9
Flute Count (NOF): 3
Body Material: Carbide
Flute Helix Angle (FHA): 45 Degrees
Measurement Type: Metric
Shank Type: Weldon
Unit: M
End Shape: Corner Radius
