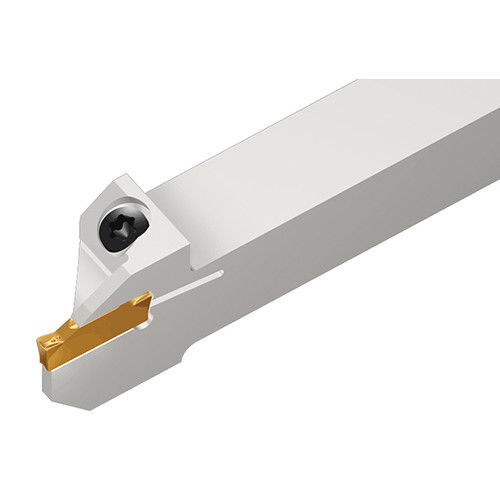

RHINOGROOVE external holders for parting of small dia. solid bar and shallow grooving on swiss type automatic lathes
Additional information
Weight
0.2600 kg
Dimensions
barcode
Additional Information

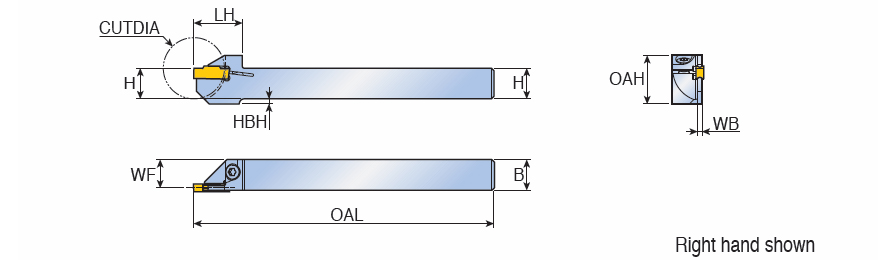

Shank Height (H): 16 mm
Overall Length (OAL): 125 mm
Shank Width (B): 16 mm
Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Parting, Body Width (WB): 1.8 mm
Body Material: Steel
Functional Width (WF): 15.1 mm
Measurement Type: Metric
Head Length (LH): 19 mm
Unit: M
