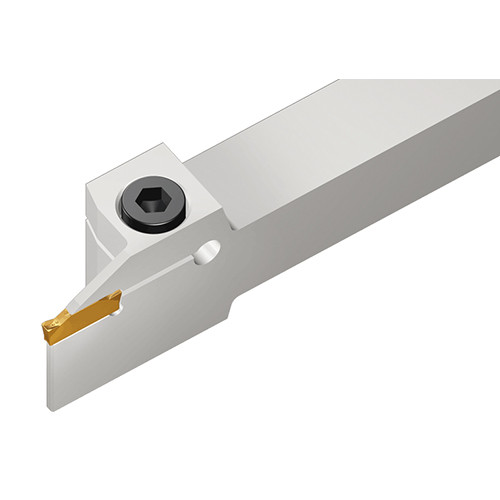

RHINOGROOVE external holders for parting of small dia. solid bar and shallow grooving
Additional information
Weight
0.7400 kg
Dimensions
barcode
Additional Information

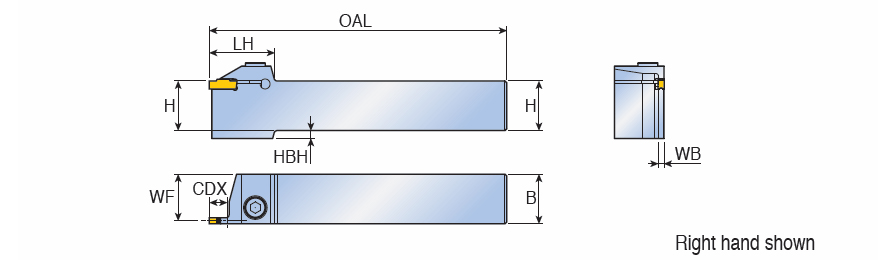

Cutting Depth Maximum (CDX): 12 mm
Overall Length (OAL): 150 mm
Shank Height (H): 25 mm
Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Parting, Shank Width (B): 25 mm
Body Material: Steel
Body Width (WB): 3.9 mm
Measurement Type: Metric
Functional Width (WF): 23.1 mm
Unit: M
Head Length (LH): 37 mm
