Taegutec RNGN 120700 AB30

Product Code: 5700487

$26.18$23.80 Ex. GST

Product Code: 5700487 SKU 5700487 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

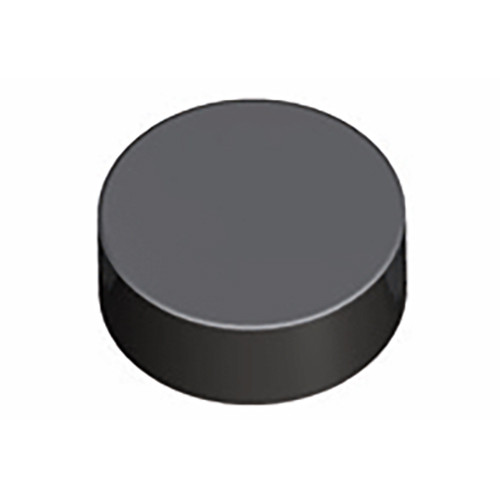

Negative Round ground Ceramic insert without hole for cast iron & hardened steel machining

Weight	0.0056 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Hard Materials, Min D.O.C.: 0.1 mm Application:, Ext Neutral Round, Ext Profile Round, Inserts, Depth of Cut Maximum (APMX): 4 mm Insert Thickness (S): 7.94 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Cutting Edge Material: Ceramic Measurement Type: Metric Coating: TiCN+Al2O3 Body Material: Carbide Grade: AB30 Unit: M
