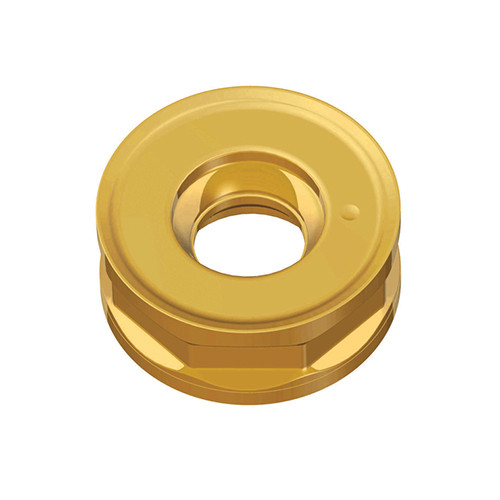

Taegutec RNMU 1004-ML TT2510

Product Code: 6126888

$21.64$19.67 Ex. GST

Product Code: 6126888 SKU 6126888 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided economical round inserts for general milling applications with max. 8 index per side (total 16 corners) when the depth of cut is limited.

Additional information

Weight	0.0043 kg
barcode
Additional Information	Applicable Material:, Steel, Hard Materials, Grade: TT2510 Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.3 mm/tooth Corner Radius (RE): 5 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 4 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Inscribed Circle Diameter (IC): 10 mm Measurement Type: Metric Insert Thickness (S): 4.5 mm Body Material: Carbide Coating: AlTiN Unit: M
