Taegutec RNMU 1004S-M TT7800

Product Code: 5616416

$19.67$17.88 Ex. GST

Product Code: 5616416 SKU 5616416 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

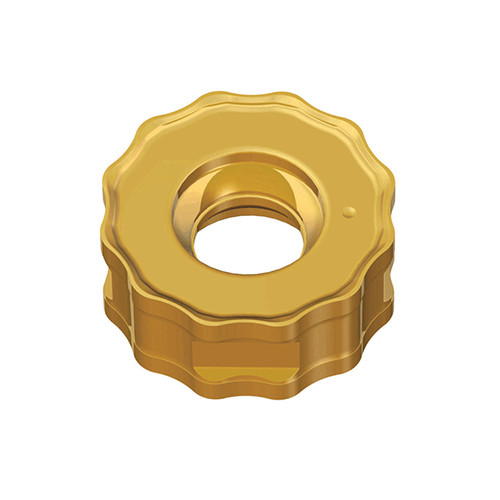

Double-sided economical round inserts with serrated cutting edges for smooth machining & 4 index per side -total maximum 8 corners

Weight	0.0042 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT7800 Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.35 mm/tooth Cutting Edge Length (L): 5 mm Cutting Edge Material: Carbide Corner Radius (RE): 5 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 4 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 10 mm Body Material: Carbide Insert Thickness (S): 4.5 mm Unit: M Coating: TiCN+Al2O3+TiN
