Taegutec RNMU 1205S-M TT8525B

Product Code: 6338578

$22.21$20.19 Ex. GST

Product Code: 6338578 SKU 6338578 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec RNMU 1205S-M TT8525B

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

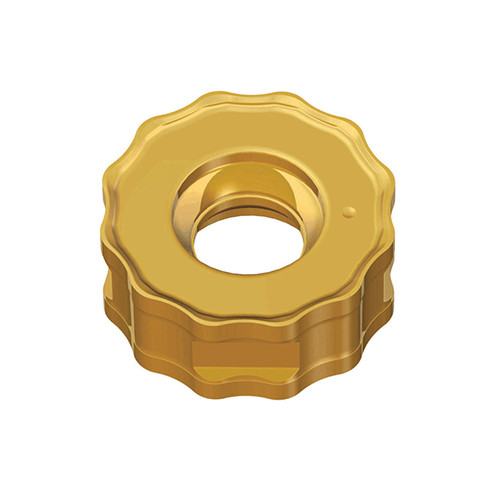

Double-sided economical round inserts with serrated cutting edges for smooth machining & 4 index per side -total maximum 8 corners

Additional information

Weight	0.0065 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Grade: TT8525B Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.4 mm/tooth Cutting Edge Length (L): 6 mm Cutting Edge Material: Carbide Corner Radius (RE): 6 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 12 mm Body Material: Carbide Insert Thickness (S): 5 mm Unit: M Coating: MTCN-Al2O3-TiN

Brand

Taegutec
