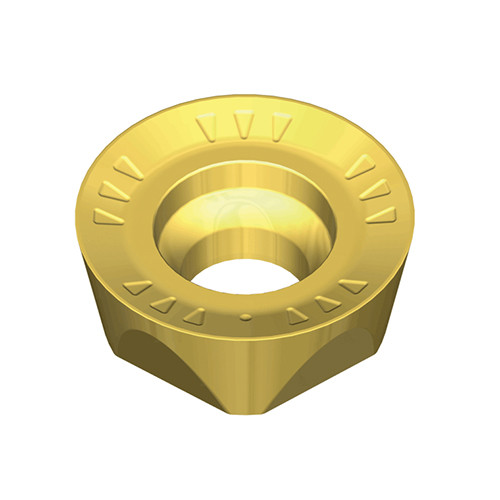

Taegutec RTHX 1004-5MLL TT8080

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8080
Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.3 mm/tooth
Corner Radius (RE): 5 mm
Cutting Edge Material: Carbide
Depth of Cut Maximum (APMX): 3.3 mm
Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth
Inscribed Circle Diameter (IC): 10 mm
Measurement Type: Metric
Insert Thickness (S): 4 mm
Body Material: Carbide
Coating: TiAlN+TiN
Unit: M
