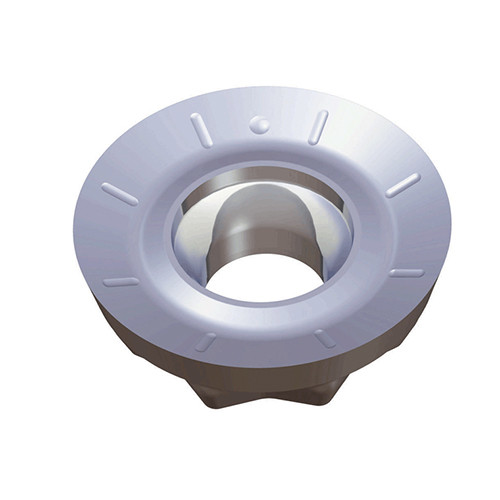

Taegutec RXHX 12T3-AL K10

Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10
Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.35 mm/tooth
Cutting Edge Length (L): 6 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 6 mm
Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth
Depth of Cut Maximum (APMX): 5 mm
Measurement Type: Metric
Inscribed Circle Diameter (IC): 12 mm
Body Material: Carbide
Insert Thickness (S): 3.97 mm
Unit: M
Coating: Uncoated
