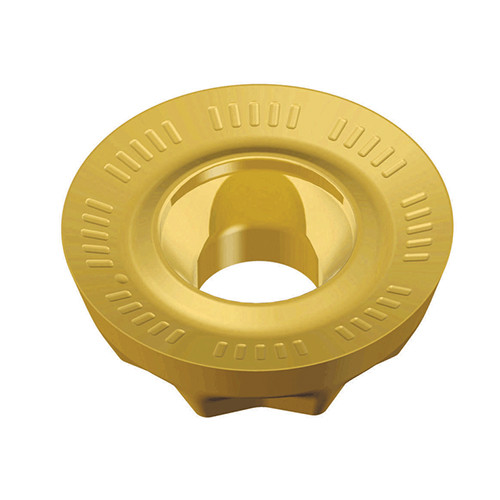

Taegutec RXMX 12T3-ML TT8020

Product Code: 5610460

$18.68$16.98 Ex. GST

Product Code: 5610460 SKU 5610460 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec RXMX 12T3-ML TT8020

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Positive round inserts with sharp cutting edges for exotic materials

Additional information

Weight	0.0047 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8020 Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.06 mm/tooth Cutting Edge Length (L): 6 mm Cutting Edge Material: Carbide Corner Radius (RE): 6 mm Minimum Feed per Tooth (fz(min)): 0.03 mm/tooth Depth of Cut Maximum (APMX): 5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 12 mm Body Material: Carbide Insert Thickness (S): 3.97 mm Unit: M Coating: TiCN

Brand

Taegutec
