Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec RXMX 2006-M TT8020
$33.30$30.27 Ex. GST

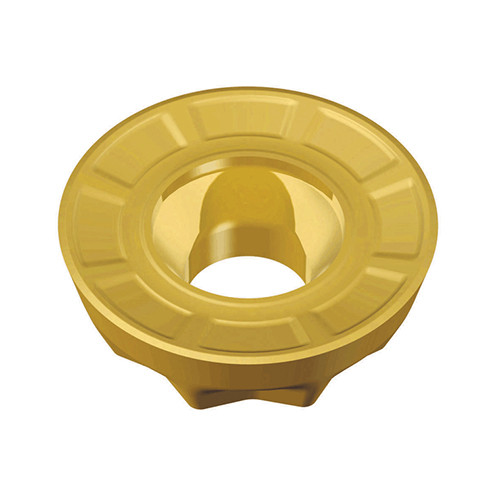

Positive round inserts with medium geometry for general applications
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8020 Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Clearance Angle Major (AN): 15 Degrees Cutting Edge Length (L): 10 mm Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Corner Radius (RE): 10 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 8 mm Minimum Feed per Tooth (fz(min)): 0.075 mm/tooth Inscribed Circle Diameter (IC): 20 mm Measurement Type: Metric Insert Thickness (S): 5.85 mm Body Material: Carbide Coating: TiCN Unit: M
