Taegutec RXMX 2006-M TT9080

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080

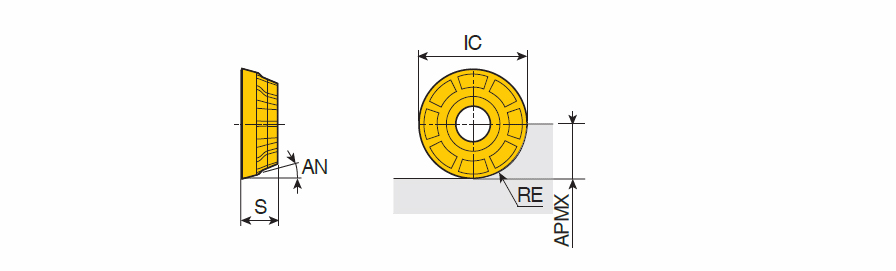

Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Clearance Angle Major (AN): 15 Degrees
Cutting Edge Length (L): 10 mm
Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth
Corner Radius (RE): 10 mm
Cutting Edge Material: Carbide
Depth of Cut Maximum (APMX): 8 mm
Minimum Feed per Tooth (fz(min)): 0.075 mm/tooth
Inscribed Circle Diameter (IC): 20 mm
Measurement Type: Metric
Insert Thickness (S): 5.85 mm
Body Material: Carbide
Coating: TiAlN+TiN
Unit: M
