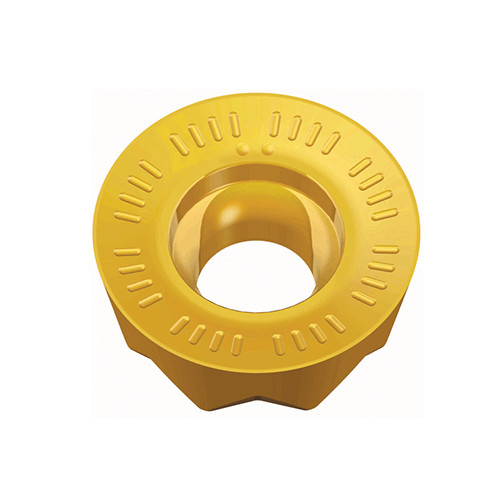

Taegutec RYHX 0803-ML TT8020

Description

Positive ground strong round inserts with sharp cutting edges for exotic materials machining

Weight	0.0019 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8020 Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.25 mm/tooth Cutting Edge Length (L): 4 mm Cutting Edge Material: Carbide Corner Radius (RE): 4 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 3.5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 8 mm Body Material: Carbide Insert Thickness (S): 3.2 mm Unit: M Coating: TiCN
