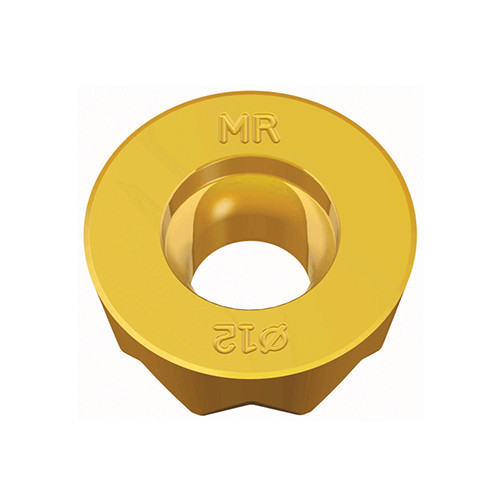

Taegutec RYHX 1205-MR TT2510

Product Code: 6126874

$26.38$23.98 Ex. GST

Product Code: 6126874 SKU 6126874 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec RYHX 1205-MR TT2510

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Positive ground strong round inserts with flat top geometry for heavy roughing applications

Additional information

Weight	0.0066 kg
barcode
Additional Information	Applicable Material:, Steel, Hard Materials, Grade: TT2510 Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.35 mm/tooth Cutting Edge Length (L): 6 mm Cutting Edge Material: Carbide Corner Radius (RE): 6 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 6.5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 12 mm Body Material: Carbide Insert Thickness (S): 4.8 mm Unit: M Coating: AlTiN

Brand

Taegutec
