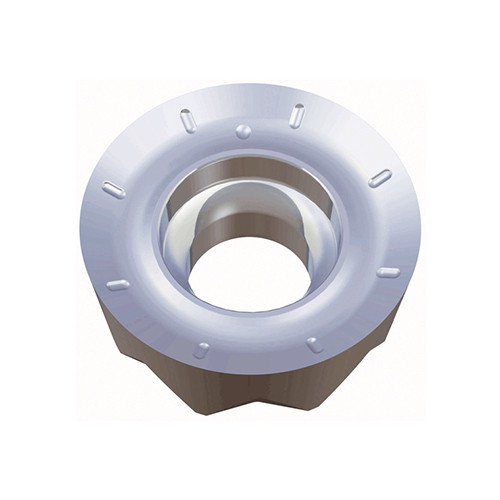

Taegutec RYHX 1606-AL K10

Product Code: 5614109

$32.70$29.73 Ex. GST

Product Code: 5614109 SKU 5614109 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec RYHX 1606-AL K10

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Positive ground strong round inserts with sharp cutting edges & polished top for aluminum machining

Additional information

Weight	0.0124 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10 Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.8 mm/tooth Cutting Edge Length (L): 8 mm Cutting Edge Material: Carbide Corner Radius (RE): 8 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 6.4 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 16 mm Body Material: Carbide Insert Thickness (S): 6.1 mm Unit: M Coating: Uncoated

Brand

Taegutec
