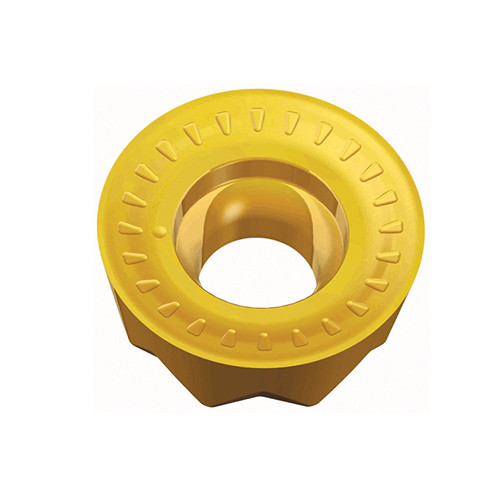

Taegutec RYMX 0803-M TT6080

Product Code: 5614601

$15.97$14.52 Ex. GST

Product Code: 5614601 SKU 5614601 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive strong round inserts with medium geometry for general applications

Weight	0.0032 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080 Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.25 mm/tooth Cutting Edge Length (L): 4 mm Cutting Edge Material: Carbide Corner Radius (RE): 4 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 3.2 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 8 mm Body Material: Carbide Insert Thickness (S): 3.2 mm Unit: M Coating: AlTiN+TiN
