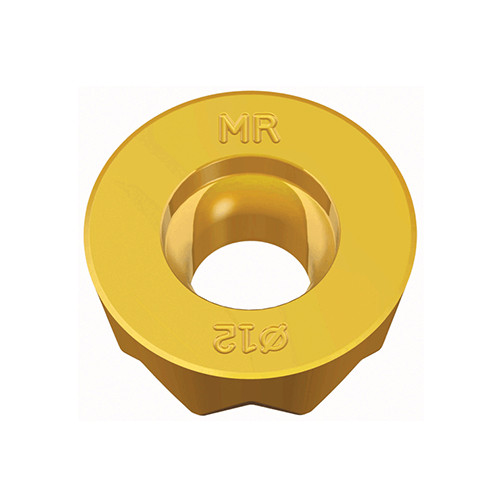

Taegutec RYMX 0803-MR TT9080

Product Code: 5614128

$15.97$14.52 Ex. GST

Product Code: 5614128 SKU 5614128 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive strong round inserts with flat top geometry for heavy roughing applications

Weight	0.0026 kg
barcode

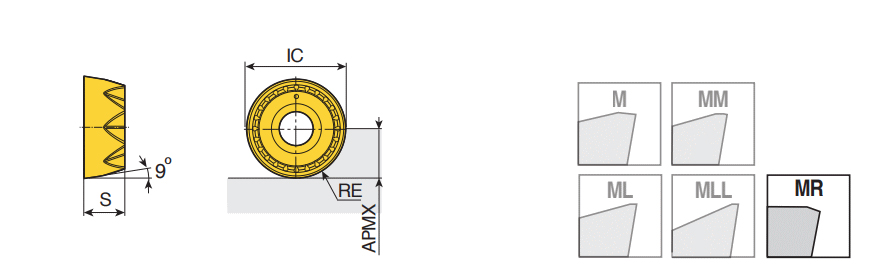

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.3 mm/tooth Cutting Edge Length (L): 4 mm Cutting Edge Material: Carbide Corner Radius (RE): 4 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 3.5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 8 mm Body Material: Carbide Insert Thickness (S): 3.2 mm Unit: M Coating: TiAlN+TiN
